T/Pump® Service Parts



For additional information and assistance, you can access our manuals or contact us.

View a downloadable version of the service parts.


T/Pump® Service Parts List
Product Number & Description Image


03394000

Brass Manifold Fitting



03791001

Blue Hose Strap



03884001

Female Clik Tite



03887001

Male Clik Tite



03988000

Brass Barbed Hose Fitting



03989000

Orificed Hose Fitting



04152000

Fan, Motor Assembly



04939014

Thermostat



08086000

Hose Assembly With Clik Tite



08648000

Hose Assembly With Colder



100092000

Connector Lever Nut 3 Conductor Terminal



100127000

Reservoir TP600 & TP700



100129000

Center Tray Assembly



100132000

Impeller Bottom Housing



100133000

Impeller Top Housing



100134000

Pin for Impeller



100139000

Front Housing Assembly



100145000

Brass Manifold Heater



100152000

Reservoir O Ring Seal



100256001

Heater Cartridge Assembly 120V



100261000

Motor and Mounting Plate 115V



100267000

Power Cord Assembly



100269001

Membrane Panel TP700/700C



100275000

Cap Assembly



100288001

Instruction Label, TP700



100289001

Ratings Label TP700



100289003

Ratings Label TP700C



100292000

Clip for Cord



100378000

Cap for Impeller Pin



100578000

Danger Label



100706000

Wire Harness Assembly Heater Switched



100706001

Wire Harness, PCB Earth



100706002

Wire Harness AC Neutral Return



100706003

Wire Harness Assembly, Brass Manifold Earth



100818001

Kit: Upper Front Housing with Membrane Panel (TP700/TP700C)



100819001

Kit: Rear Housing and Instruction TP700



100820000

Kit: Reservoir Assembly TP700



100821001

Kit: Heater Assembly. Includes Brass Manifold, 2 O-Rings, 4 Fittings



100822001

Kit: Front and Rear Housing TP700 with Membrane Panel



100898000

Kit: PC Board Sensor Assembly



100925000

T/Pump® Test Probe Assembly



101157000

Impeller Magnet Assembly



101158000

Magnet Driver Assembly

50074000

Label Stick on 2-3/4 x 7/16



77926000

Adapter Hose Assembly Kit TP700C to TPT9



77926001

Adapter Hose Assembly Kit – TP700C to TP700



77926002

Adapter Hose Assembly Kit -TP700 to TP700C



77926003

Adapter Hose Assembly Kit Clik-Tite Extensions



77926004

Adapter Hose Assembly Kit Male Colder Extension



77926005

Adapter Hose Assembly Kit Female Colder Extension.



8001061127

O-Ring for Clik-Tite Connector, Male



81002028

Tubing, PVC 1/4 ID x 3/8 OD 3 1/2″ LG



81002048

Tubing, PVC 1/4 ID x 3/8 OD 6″ LG



81275000

Tubing 1/4 ID PVC Clear – Sold by the foot



90018029

Screw Machine PN HD 4-40



90018075

Screw CR 8-32 UNC 2A x3/8 LG S



90018082

Machine Screw PN HD 8-32



90049005

Spring Lockwasher



90076018

Bushing (HEYCO)



90295019

O Ring 11/16 OD X 1/2 ID



90295020

Fill Gasket O Ring



90385000

Suction Cup Foot



90514002

Screw Pan Head CR 4-24 X 3



90514013

Screw THD CTG 6-20 X 7/8



90514020

Screw THD CTG 8-18 X 3/4



90548000

Adjustable Pinch Clamp



90603000

Label, Ground Identification



90773000

Tie, Double Loop Nylon Black



91367004

Coupling Thermoplastic White, Colder Connection Female



91390000

Toroid Ferrite Ring



91454052

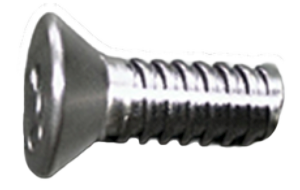

Screw Machine FILH Cross



91504000

UNV Male Colder Connector



TPT9

Flow and Temperature Tester



TPIV

T/Pump® IV Bracket



TPS2

5 Leg T/Pump® Stand
